The All Wave BondPro 4000T/2000T are nondestructive testing inspection systems. They are designed to be used for the evaluation of the physical characteristics of both metallic and non-metallic materials utilizing sound. The instrument and probe system operates by introducing inaudible sound waves into a test specimen at a frequency range of 10 kHz to 50 kHz via our specially designed All Wave probe. The probe is held in direct contact with the material being evaluated whereby it transmits sound waves into the material and receives the resultant signal response for evaluation of the materials condition. The instrument was specifically designed to incorporate a simplified control layout which is ultimately more user friendly to the operating technician than existing comparable systems.

The BondPro 4000T/2000T systems are designed to electronically introduce vibratory sound waves into a test specimen and subsequently process the received sound signal so as to identify discontinuities in various structures and components, which are fabricated from many different materials combined into a variety of matrices. The system utilizes a unique amalgamation of known electronic/computer commercially available hardware and software in tandem with our specially designed probe for the generation and subsequent display of the received signal. The specially designed probe is able to achieve a significantly higher level of sensitivity not currently available in the industry today. The hardware arrangement and software configuration of the instrument and probe are indigenous to and proprietary to All Wave Innovations, Inc. design specifications.

The BondPro 4000T/2000T systems operate on the theory of recognizing the inherent resonant frequency of the matrix of materials being examined and presenting an image on an electronic display. The image is representative of the physical condition of the test specimen undergoing examination. The user then extrapolates the information for a determination of the integrity of the material being tested, as compared to a known acceptable standard of the same material and matrix.

GENERAL CONCEPT OF THE BONDPRO 4000T/2000T NON-DESTRUCTIVE TESTING INSPECTION SYSTEM

GENERAL CONCEPT OF THE BONDPRO 4000T/2000T NON-DESTRUCTIVE TESTING INSPECTION SYSTEMS

THE BONDPRO 4000T/2000T FLAW DETECTORS WILL BE THE FIRST FLAW DETECTION INSTRUMENTS THAT UTILIZE RESONANT LOW VOLTAGE OPERATION TO DRIVE THE COMPOSITE PROBE ELEMENTS (10 VOLTS). THIS IS MADE POSSIBLE WITH ALL ELEMENTS OF THE CIRCUITRY, CABLE AND PROBES TO BE IN RESONANT HARMONY WITH EACH OTHER. 10 VOLT OPERATION IS ALL THAT IS REQUIRED FOR EXCELLENT DETECTION RESULTS IN THE DEFAULT LPD (low probe drive) SETTING. A HIGHER VOLTAGE MODE, (HPD-High Probe Drive- 15Volts) IS USED FOR SINGLE AND DUAL ELEMENT ULTRASONIC PROBES WHEN REQUIRED TO PENETRATE THICKER AND DENSER COMPOSITE MATRICES. THE LOW VOLTAGE REQUIREMENTS ALLOW FOR DECREASED PROBE TO SURFACE SCRUBBING NOISE AND INCREASED BATTERY LIFE. PRESENT COMMERCIALLY AVAILABLE INSTRUMENTS UTILIZE 100VDC TO 300VDC TO ACHIEVE ADEQUATE FLAW DETECTION AND PRODUCE UNWANTED SCRUBBING NOISE.

THE BONDPRO 4000T/2000T FLAW DETECTORS ARE CAPABLE OF FULL WIRELESS INTERNET AND BLUETOOTH OPERATION. THIS IS A FIRST IN CLASS CAPABILITY. THIS ALLOWS FOR FULL REMOTE SOFTWARE UPDATES FROM THE MANUFACTURER. DATA AND SCREEN SHOTS OF TESTS CAN BE UPLOADED TO A REMOTE LOCATION THROUGH AN INTERNET CONNECTION RIGHT FROM THE INSTRUMENT.

THE BONDPRO 4000T/2000T CONTAINS A FULL OPERATING SYSTEM SIMILAR TO WINDOWS. THIS ALLOWS THE USER TO UTILIZE A COMPLETE OFFICE SUITE TO WRITE REPORTS, SAVE SCREEN SHOTS, SEND AND RECEIVE EMAILS AND DOWNLOAD AND VIEW INSTRUCTION VIDEOS RELATING TO SPECIFIC JOB TASKS. THIS IS ANOTHER FIRST FOR THE INDUSTRY. THE USER ALSO HAS FULL ACCESS TO THE INTERNET. THE USER HAS ACCESS TO A USB PORT FOR USING THUMDRIVES AND OTHER STORAGE MEDIA TO DOWNLOAD OR UPLOAD DATA AND PROGRAMS. THE USER WILL HAVE ACCESS TO AN EXTERNAL HDMI PORT FOR CONNECTING TO LARGE DISPLAYS FOR PRESENTATIONS AND INSTRUCTION.

THE BONDPRO 4000T/2000T UTILIZES A MODULAR DESIGN CONCEPT WHICH ALLOWS THE USE OF OFF-THE-SHELF MODULES AND CUSTOM DESIGNED PROPRIETARY MODULES FOR EASY TROUBLESHOOTING AND REPLACEMENT WHEN A FAILURE OCCURS. THIS REDUCES THE TIME AND COST OF REPAIRS FOR THE CUSTOMER. (SEE BELOW FOR DETAILED DESCRIPTIONS AND SPECIFICATIONS).

THE BONDPRO 4000T/2000T IS THE FIRST NDT INSTRUMENT TO BE BUILT INSIDE A COMPLETELY SELF CONTAINED CASE WHERE THE CASE IS THE INSTRUMENT ITSELF. THE CASE IS WATERTIGHT, DUSTPROOF, AIRTIGHT WITH A PRESSURE RELIEF VALVE AND CRUSH PROOF UNDER NORMAL DROPS AND HEAVY ITEMS FALLING ON IT. THE CASE CONTAINS THE BATTERY SYSTEM, INSTRUMENT CAGE, THE DISPLAY, THE PROBE, CABLE, KEYBOARD AND MOUSE. THE CASE IS

LOCKABLE AND HAS BEEN APPROVED BY THE MILITARY AND AIRCRAFT COMPANIES FOR STORAGE AND TRANSPORT. THE ONLY EXTERNAL COMPONENTS ARE THE POWER/CHARGER PORT AND THE PROBE CONNECTOR. BOTH PROTECTED WITH DUST CAPS.

INSTRUMENT CONTROL FEATURES

** 11.6 inch TFT Capacitive Touch High Resolution Color Display. (BondPro 4000T).

** 10.1 INCH TFT Capacitive Touch High Resolution Color Display. (BondPro 2000T).

** 8 Pin Probe Jack, (outside of case).

** Power Indicator LED. (Inside of case).

** Master power ON/OFF switch. (Inside of case).

** Battery 1 or 2 selection switch. (Inside of case).

** Soft Start push on, push and hold off power switch. (Inside of case).

** 16.8 Volt DC input power jack for charging and External
    Power operation. (Outside of case).

** Internal USB access Port, External,(Outside of case), HDMI
    access Port, Eathernet Port, Probe Cable Connector, and Charger
    Power Connector

OPERATING FEATURES OF UNIT TO DATE

** ADJUSTABLE PROBE DRIVE FREQUENCY- 10Khz TO 50Khz in
100HZ INCREMENTS. (WAVEFORM FREQUENCY HAS TOTAL ADJUSTMENT CAPABILITIES OF 1HZ TO 250KHZ BUILT IN). THE ADJUSTMENTS ARE PROVIDED BY ON SCREEN SOFTWARE SLIDER WHICH IS CAPABLE OF RAPID FREQUENCY SELECTION OR SINGLE 100 HZ INCREMENTS

** SELECTABLE PROBE DRIVE,(PD), VOLTAGE. LOW PD OPERATION IS THE DEFAULT AT 10 VOLTS. MID PD IS BATTERY VOLTAGE,(14.5 TO 16.5 VOLTS), AND PASSED THROUGH A VOLTAGE/CURRENT MAGNIFYING TRANSFORMER CIRCUIT. HIGH PD IS A SELECTED BOOST VOLTAGE UP TO 30 VOLTS AND ALSO PASSED THROUGH A V/C MAGNIFYING TRANSFORMER.

** BURST WAVEFORMS ARE SELECTABLE BETWEEN SINEWAVE, SQUAREWAVE AND TRIANGLE WITH SQUAREWAVE AS DEFAULT.

** PULSE WIDTH IS GENERATED BY THE RPI AND IS ADJUSTABLE IN WIDTH AND REPETITION.

** HAS ADJUSTABLE VERTICAL, HORIZONTAL, SWEEP AND AMPLITUDE CONTROLS OF THE PLOTTED SIGNAL RETURN.

** EXPANDABLE WAVEFORM FEATURES FOR PHASE SHIFT ANALYSIS ON PLOTTED FLAW RETURNS.

** FOUR RECEIVER MODE SELECTIONS: REC A- RAW SIGNAL, REC B-(HARDWARE GENERATED IMPULSE MODE), REC C-( POSITIVE LEVEL DETECTION MODE) AND REC D-( DELAYED RETURN MODE) FOR USE IN PURE ULTRASONIC PROBE SCANNING AND TRANSMIT ARTIFACT ELIMINATION.

** ADJUSTABLE RECEIVER GAIN FROM 0 TO 50 dB.

** SELECTABLE SOFTWARE IMPULSE MODE

** SELECTABLE BETWEEN POS PLOT MODE,(DEFAULT) OR RF MODE.
THE POSITIVE MODE ONLY PLOTS THE POSITIVE PORTION OF THE RETURN AND POSITIONS IT ON THE ZERO BASELINE. THE RF MODE POSITIONS THE RETURN PLOT ON THE 50% LINE AND ALLOWS BOTH NEGATIVE AND POSITIVE PORTIONS OF THE WAVEFORM TO BE VISIBLE AND ANAYLIZED. AN OFFSET ADJUSTMENT IS INCLUDED TO POSITION THE RF PLOT EXACTLY ON THE 50% HORIZONTAL LINE.

** SELECTABLE FILTERS PROVIDING FILTERS OFF, LOW-PASS FILTER AND HIGH-PASS FILTER.

** ADJUSTABLE HOLDOFF DELAY FEATURE WHICH ADJUSTS THE RETURN OUTSIDE OF THE TRAILING EDGE OF THE BURST IP AND IS INCORPORATED IN REC D MODE

** SELECTABLE LEVEL DETECT FEATURE, (REC C), WHICH ALLOWS ONLY THE SELECTED PORTION OF THE RETURN SIGNAL TO BE DISPLAYED (ADJUSTED BY THE LEVEL CONTROL AND RECEIVER GAIN). THIS FEATURE ELIMINATES BASELINE AND SCRUBBING NOISE TO BE PASSED TO THE PLOTTED SIGNAL. THIS FEATURE PRESENTS THE PLOTTED RETURN TO BE SEEN AS A CONSTANT AMPLITUDE SIGNAL THAT APPEARS WHEN THE PROBE PASSES OVER A FLAW. THE SIZE OF THE FLAW DETERMINES THE WIDTH OF THE VIEWABLE RETURN WAVEFORM.

** ADJUSTABLE ALARM GATES, (POS & NEG), WITH VISUAL AND SOUND ALARM INDICATIONS.

** EXTERNAL HDMI CONNECTION FOR DISPLAY ON LARGE SCREENS FOR INSTRUCTION. TO BE INCORPORATED ON A LATER MODEL.

** SINGLE EXTERNAL USB PORT FOR DOWNLOADING AND UPLOADING SAVED PROGRAMS AND DATA ON STANDARD THUMB DRIVES.

** INTERNAL TIME CLOCK FOR ACCURATE TIME STAMPING OF HOUR, DAY, MONTH, AND YEAR. AUTOMATICALLY ADJUSTS FOR DAYLIGHT SAVINGS AND LEAP YEAR.

** FULL SCREEN CAPTURE OF FLAW INDICATION AND INCLUDES ALL PRESENT SETTINGS VISIBLE ON THE SCREEN LABELS. EACH SCREEN CAPTURE INCLUDES DATE AND TIME STAMP AND ALLOWS CUSTOM DATA TO BE ENTERED IN THE FILE NAME AND SAVES TO THE UNITS PICTURE FOLDER.

** SWITCHABLE FROM INSTRUMENT PROGRAM OPERATION TO LINUX OS SCREEN FOR FULL INTERNET ACCESS, MESSAGING AND MAIL. ALLOWS DIRECT ACCESS TO THE COMPANY FOR EASY DOWNLOADING OF ANY SOFTWARE UPGRADES. FULL WIFI AND BLUETOOTH CAPABILITIES. ALLOWS USE OF WIRELESS KEY BOARD AND MOUSE FOR CONVENIANT REPORT WRITEUPS WITH THE LINEX LIBRE OFFICE SUITE AVAILABLE IN OS MODE.

** AUDIBLE AND ON-SCREEN INDICATION OF DETECTED FLAWS. ALARM LIGHT INDICATION ON PROBES.

** AUDIO AND VIDEO APP FOR ALLOWING TEST AND INSTRUCTION VIDEOS TO BE VIEWED.

** ON-SCREEN OPERATIONS MANUAL AVAILABLE DURING PROGRAM OPERATION TO AID IN SETTING INSTRUMENT FUNCTIONS FOR A PARTICULAR TEST.

THE ULTIMATE IN COMMERCIAL AIR AND MILITARY FLAW DETECTION INSTRUMENTS

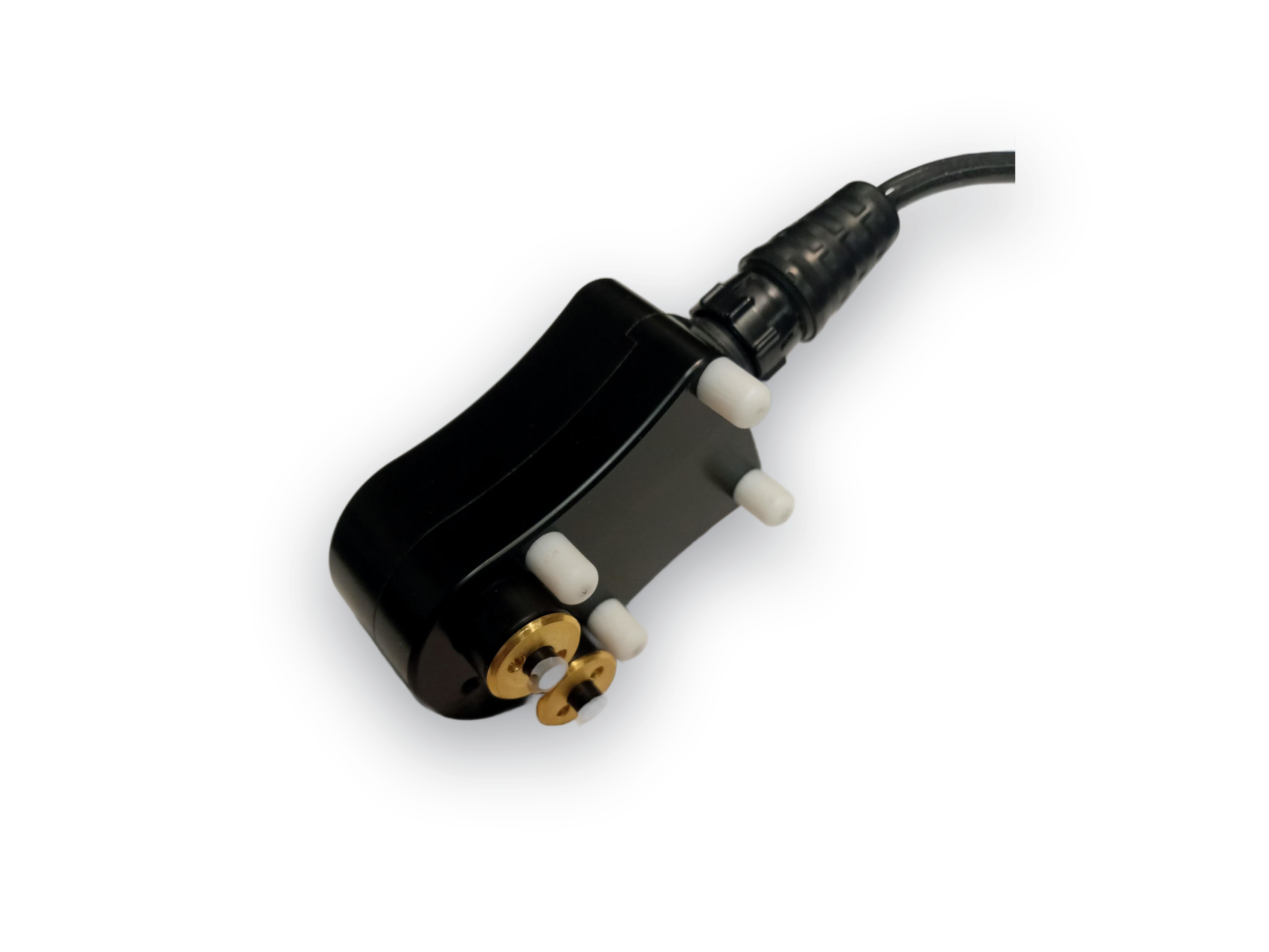

AWI FIRST GENERATION OF THE BONDPRO PROBES

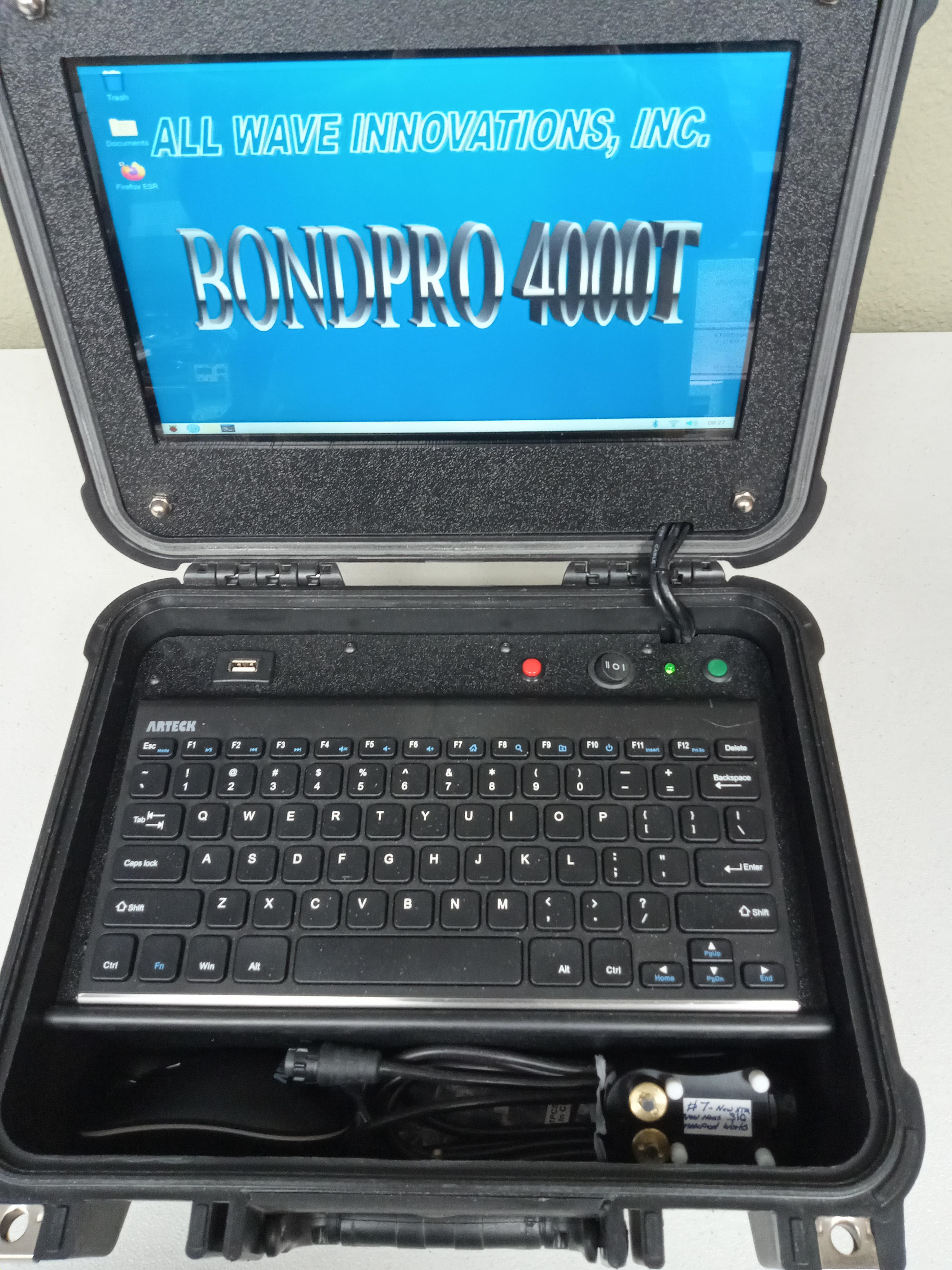

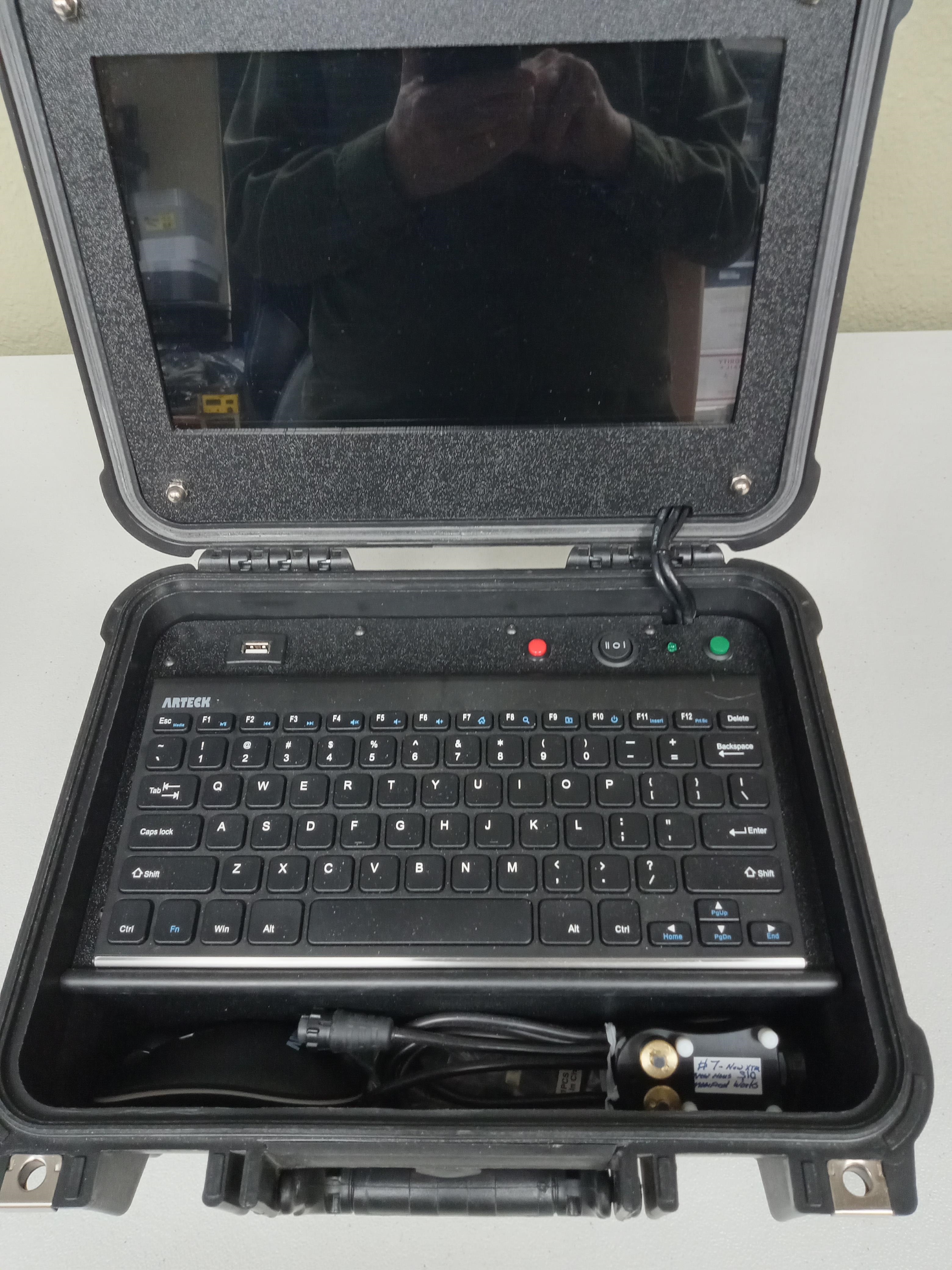

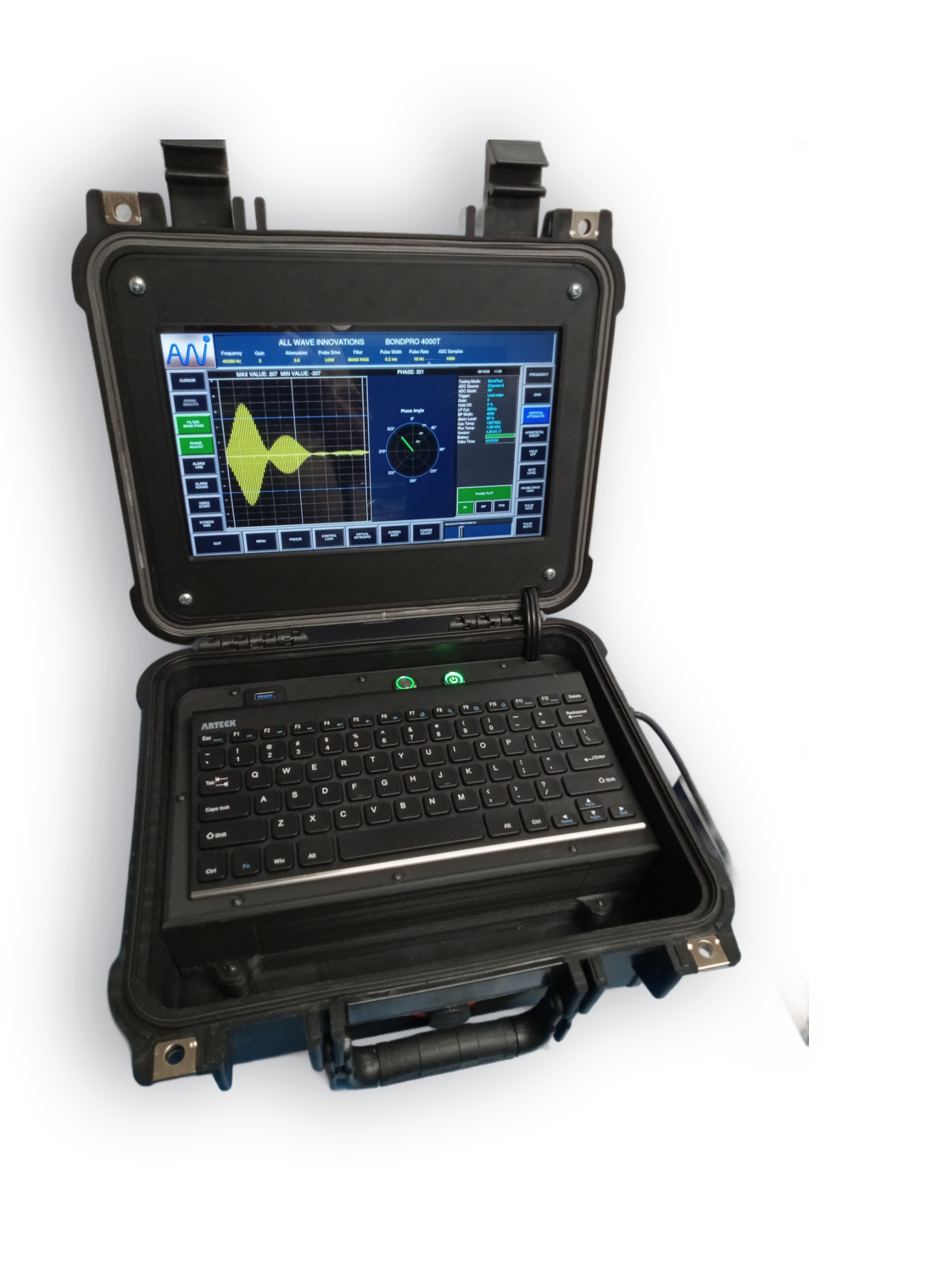

THE NEW BP4000T PROTOTYPE

SMALL AND LARGE CASE COMPARISON

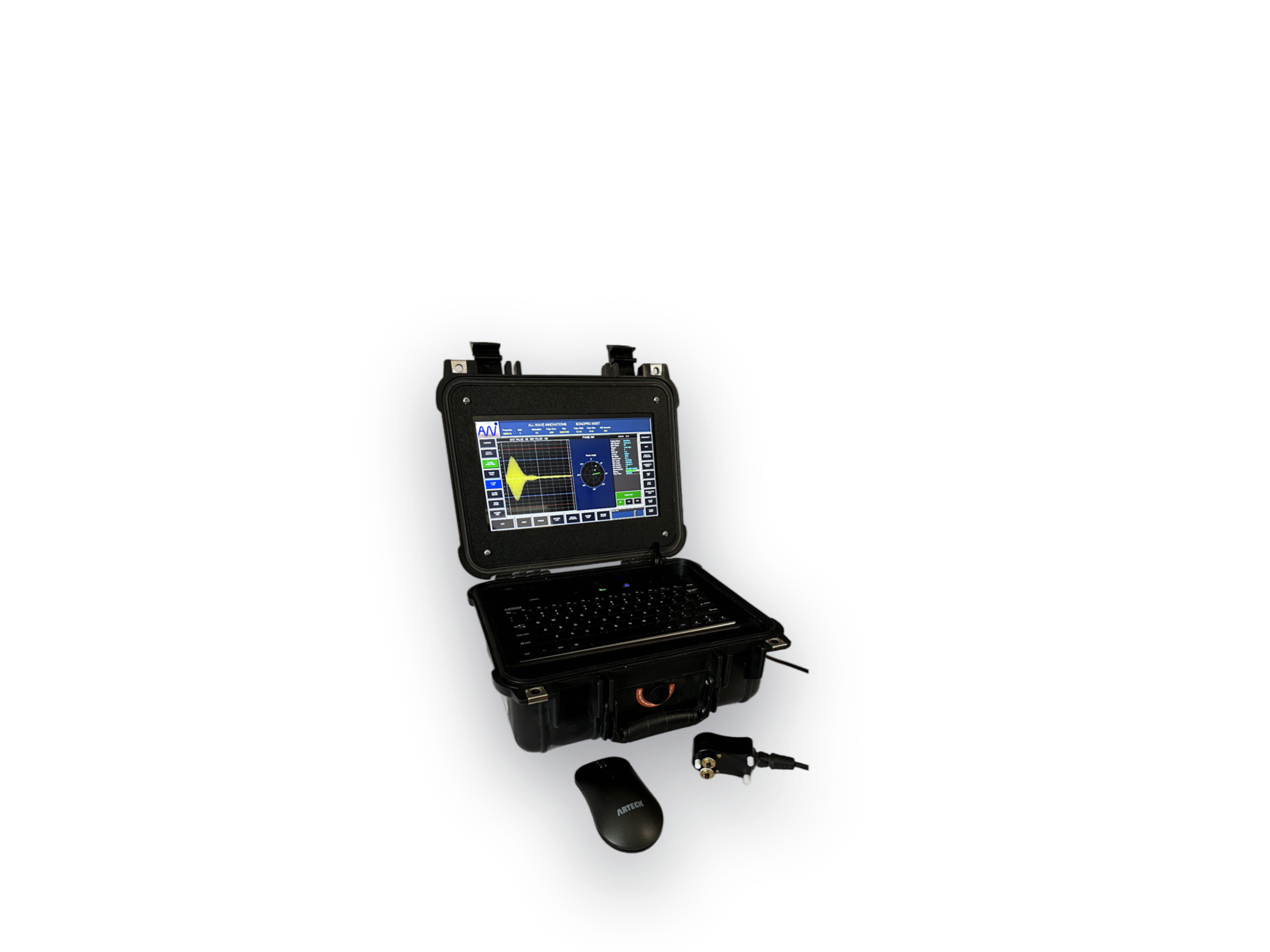

FIRST BONDPRO 2000T PROTOTYPE

FIRST GENERATION OF THE INSTRUMENT PLOT SCREENS

THIRD GENERATION OF THE INSTRUMENT PLOT SCREENS

FOURTH GENERATION OF THE INSTRUMENT PLOT SCREENS

VER 7.0 BONDPRO 4000 SHOWING RF PLOT MODE

VER 7.0 BONDPRO 4000 SHOWING POS PLOT MODE

OUTLAY OF PROBE PARTS

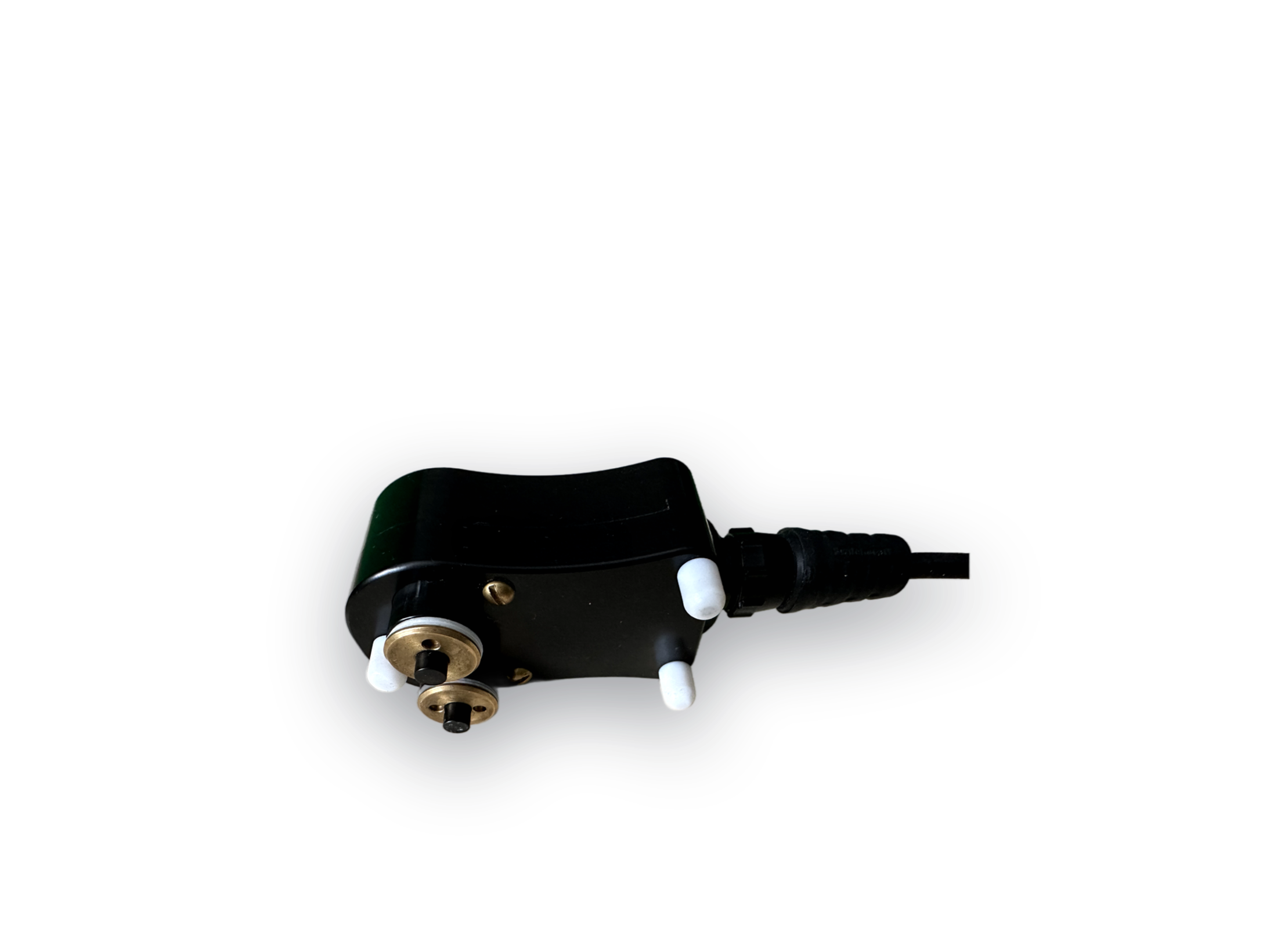

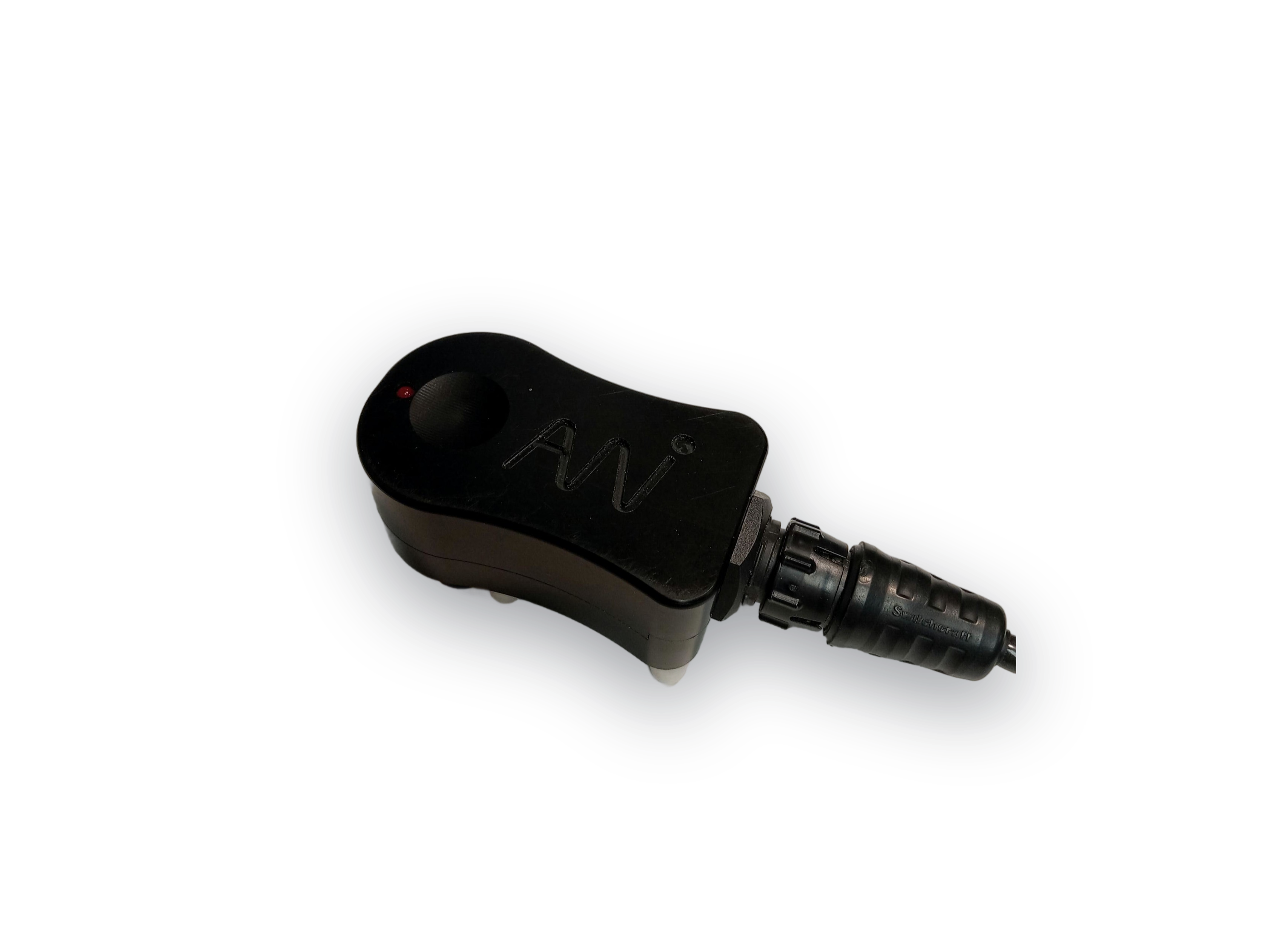

AWI 2ND GENERATION OF BONDPRO PROBES

BONDPRO PROJECT SPECIFIC PDF FILES FOR PROVISIONAL PATENT APPLICATION

RASPBERRY PI DATA FILES, COMPONENTS AND DISPLAY RESOURCES

BONDPRO OPERATIONAL SCREEN SHOTS

EARLY HAND PROBES & WIDE AREA SURFACE SCANNING PROBE (WASSP)

VER. 9.5 GUI FOR BONDPRO 4000 SHOWING RF MODE

VER 9.5 GUI FOR BONDPRO 4000 SHOWING IMPULSE MODE

VER 9.5 GUI BONDPRO 4000 SHOWING POS IMPULSE IN LPF

NEW AND SPECIFIC FEATURES THAT SET THE BONDPRO 4000T/2000 APART FROM THE COMPETITION

THE PRESENT VERSION 9.5 OF THE BONDPRO GUI PROGRAM INTERFACE

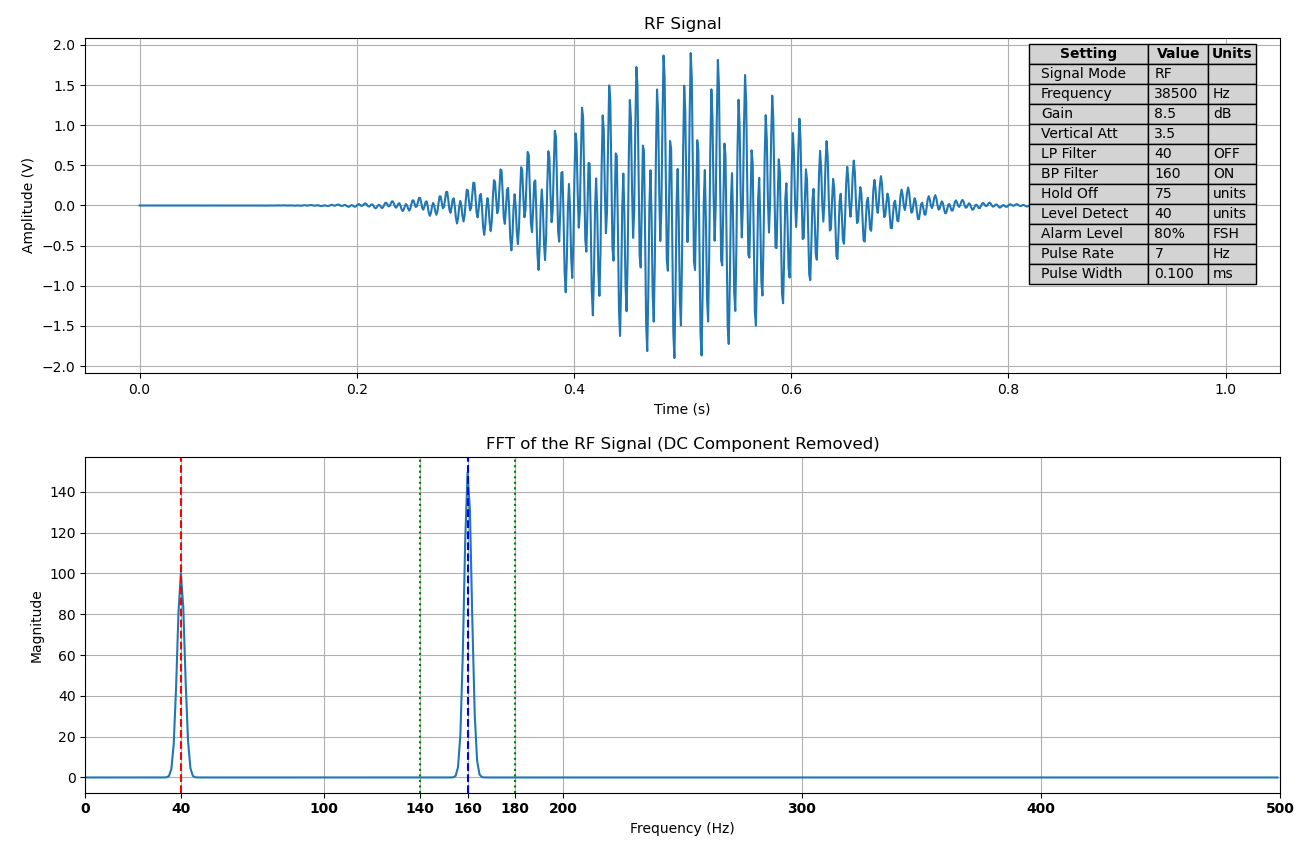

AN ADDED FEATURE TO THE APPLICATION WHICH WILL USE A FAST FOURIER TRANSFORM TO AUTOMATICALLY DETECT LOW PASS AND BANDPASS FILTER SETTINGS.

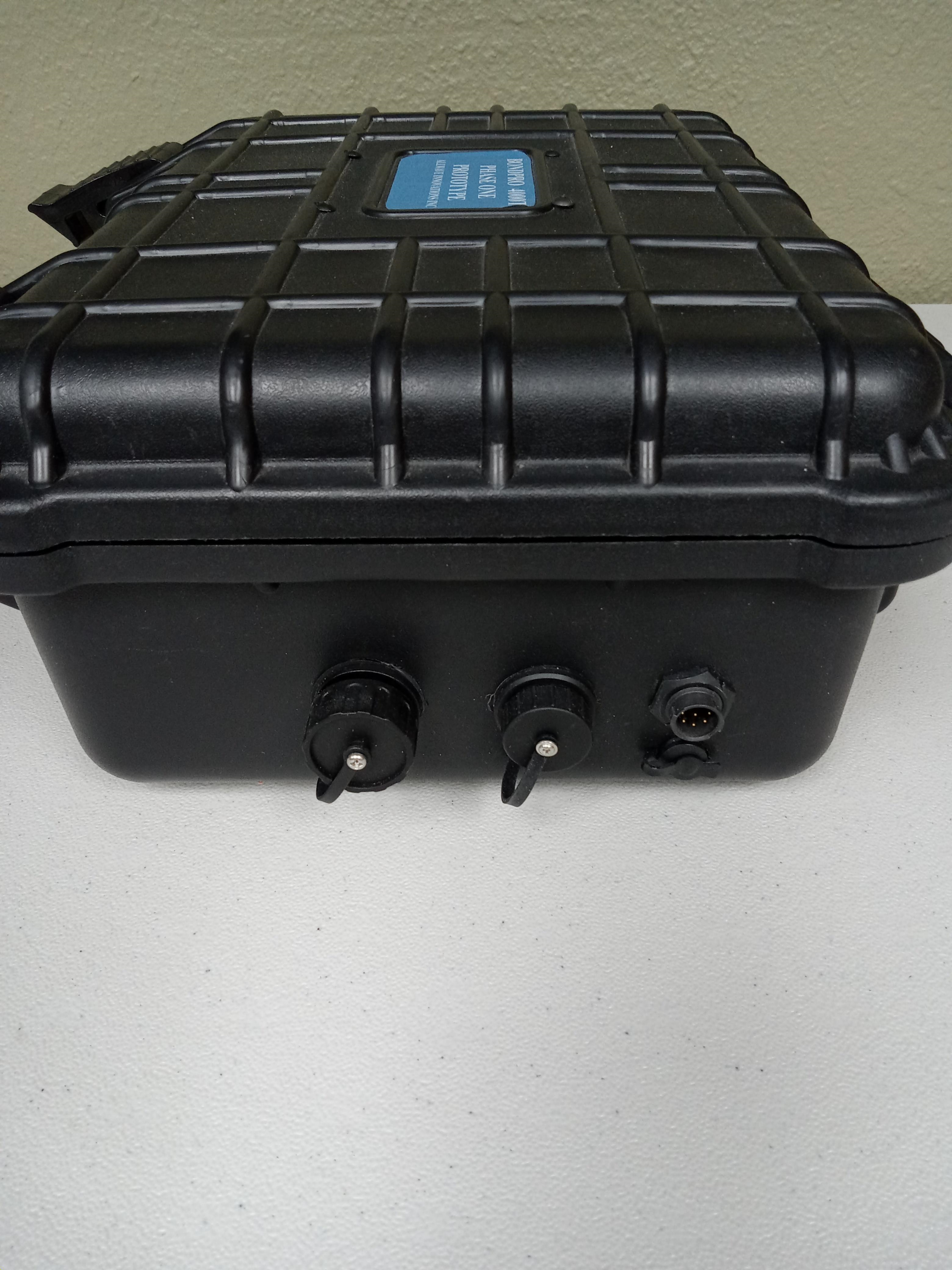

PHOTO SHOWING EXTERNAL ETHERNET PORT, HDMI PORT, PROBE CABLE CONNECTOR AND CHARGER PORT

PAGE REVISION 10/16/2024

This is a non-profit web site, dedicated to educational study and research. All copyrights belong to their owners and are acknowledged. All material presented on this web site is either news reporting or information presented for non-profit study and research, or has previously been publicly disclosed or has implicitly or explicitly been put into the public domain. Fair Use applies.

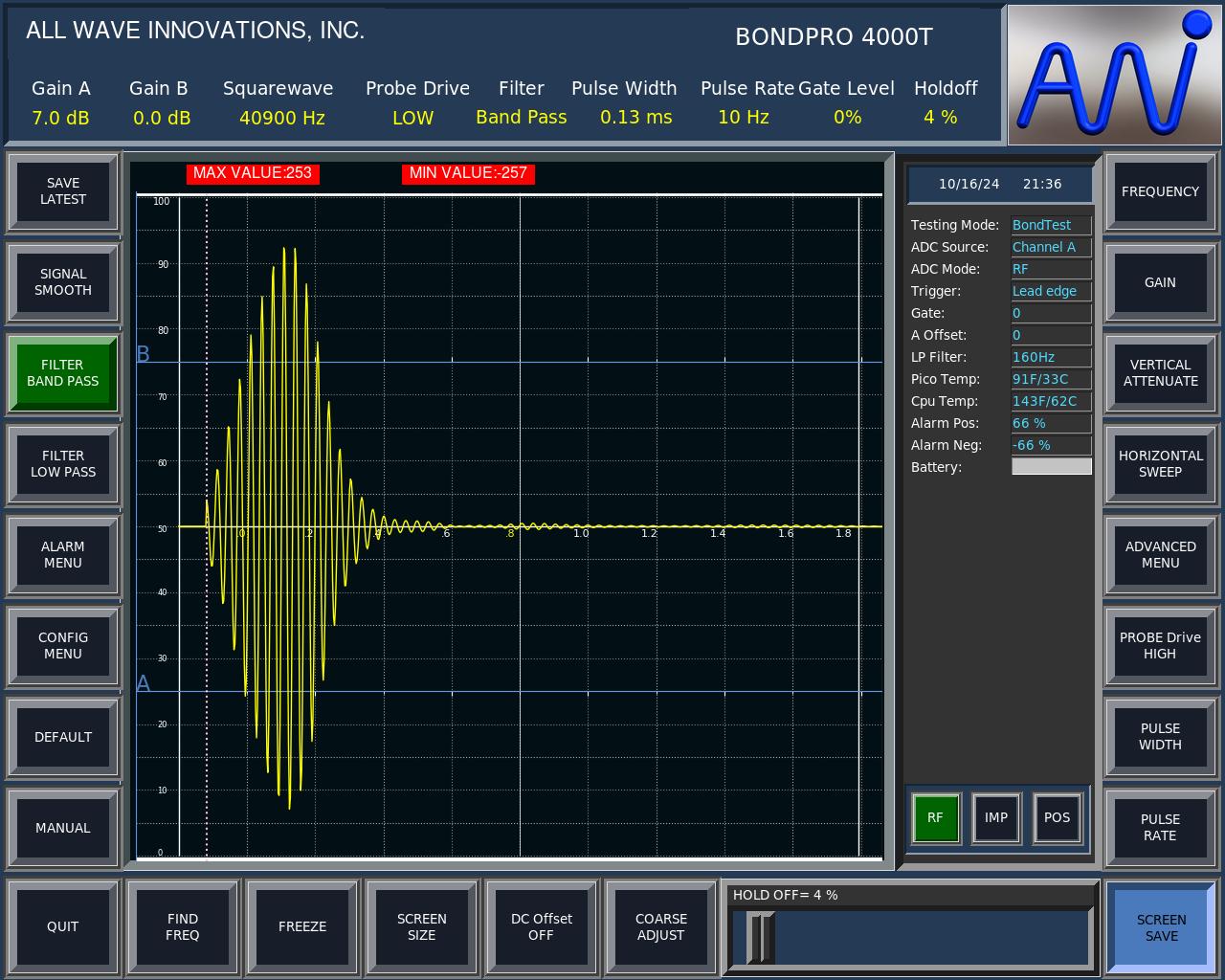

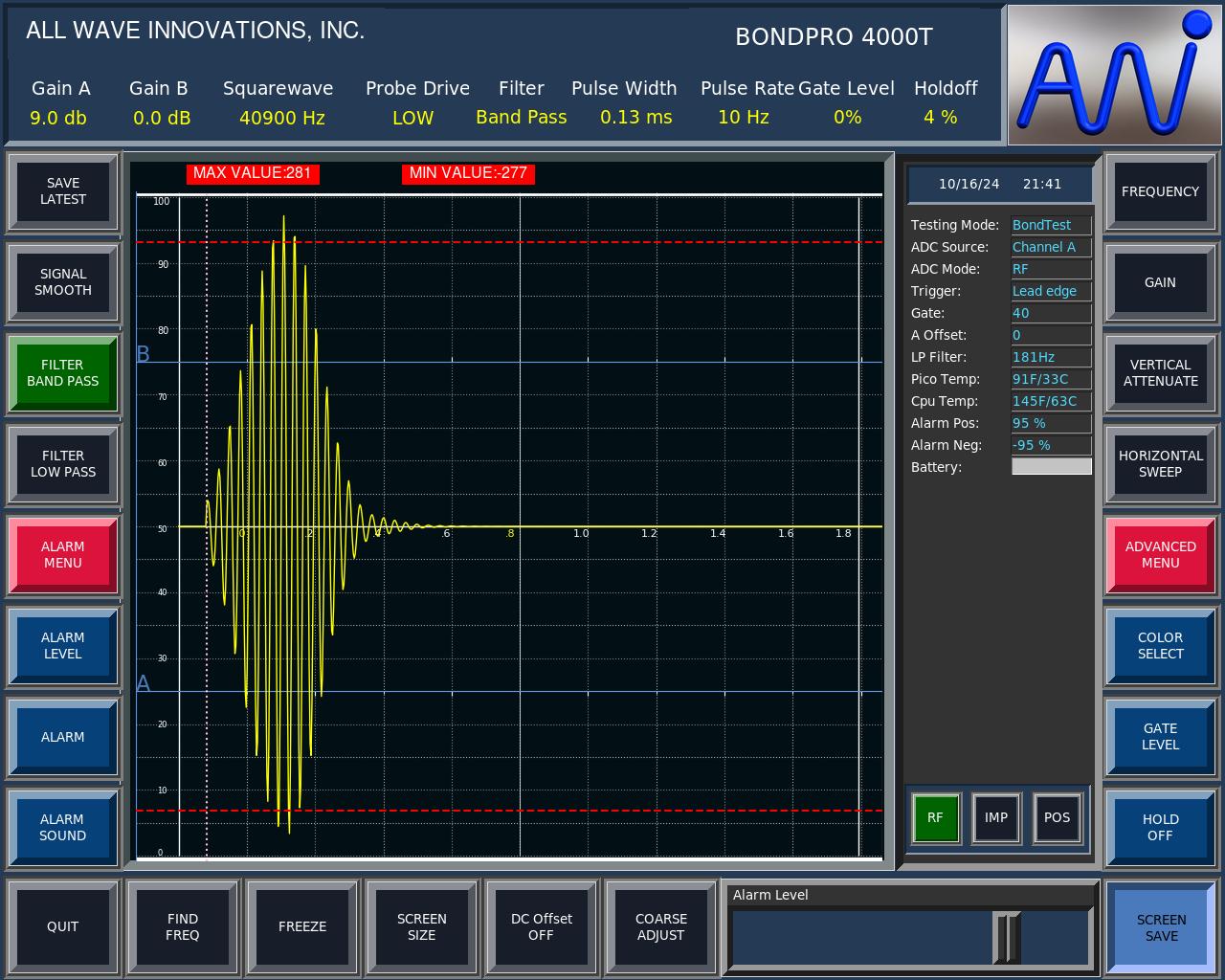

SCREENSHOT SHOWING THE RF WAVEFORM MODE WITH THE BANDPASS
FILTER ON AND THE ALARM LINES ON AND SET WITH BOTH POSITIVE AND
NEGATIVE ALARM INDICATIONS BEING SHOWN ABOVE THE WAVEFORM.

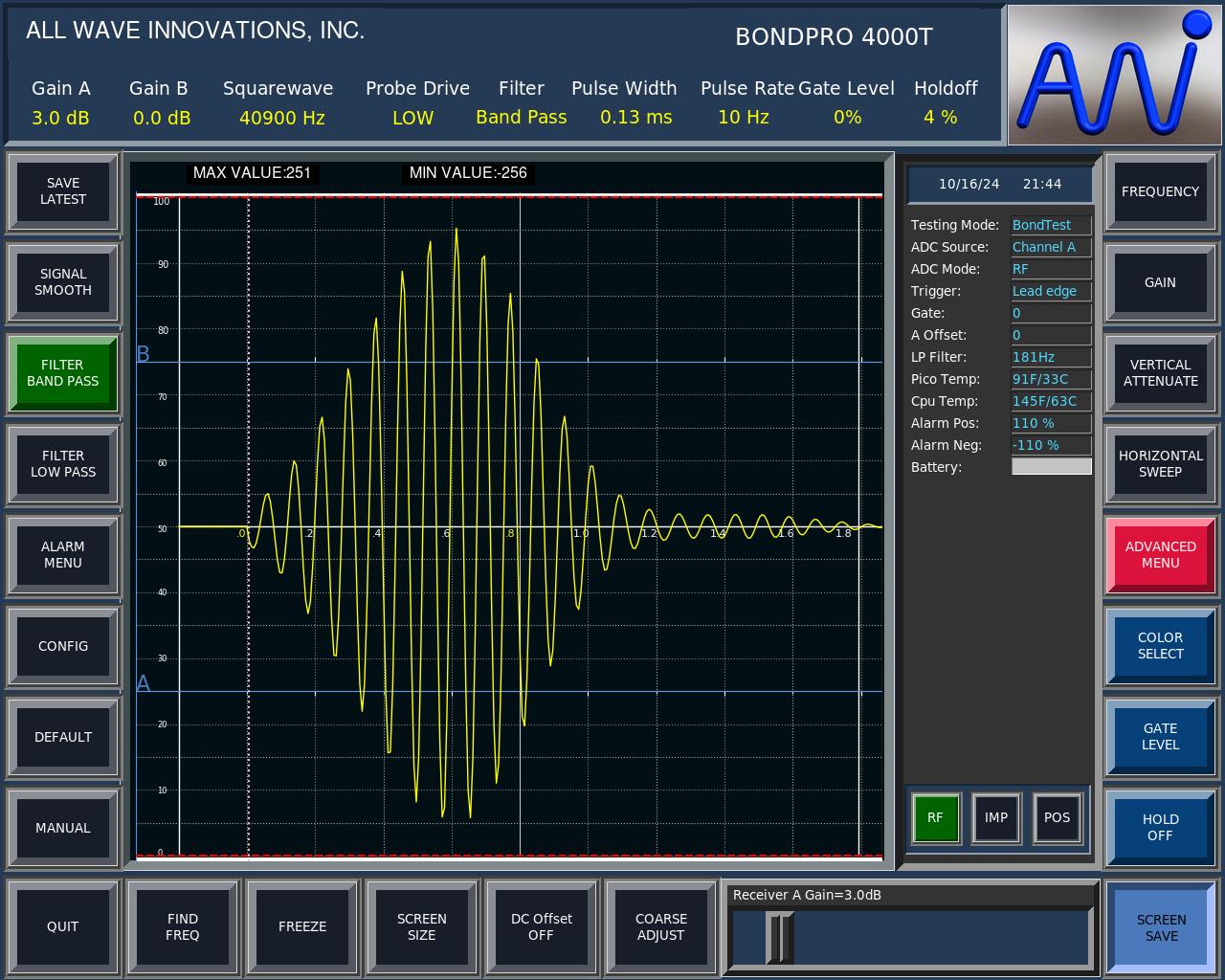

SCREENSHOT OF THE RF WAVEFORM BEING HORIZONTALLY EXPANDED
FOR DETAILED PHASE ANALYSIS OF THE RETURNED WAVEFORM.

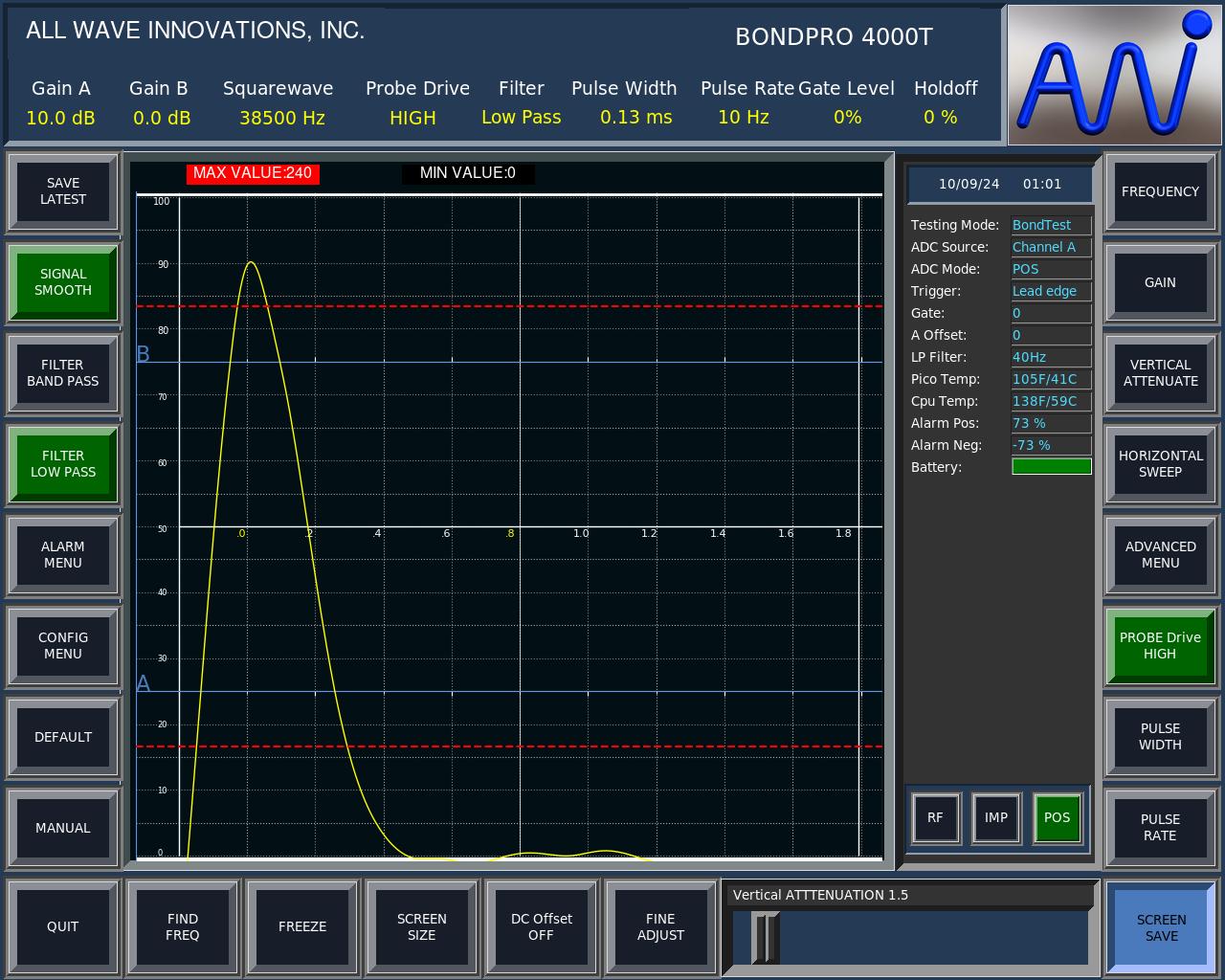

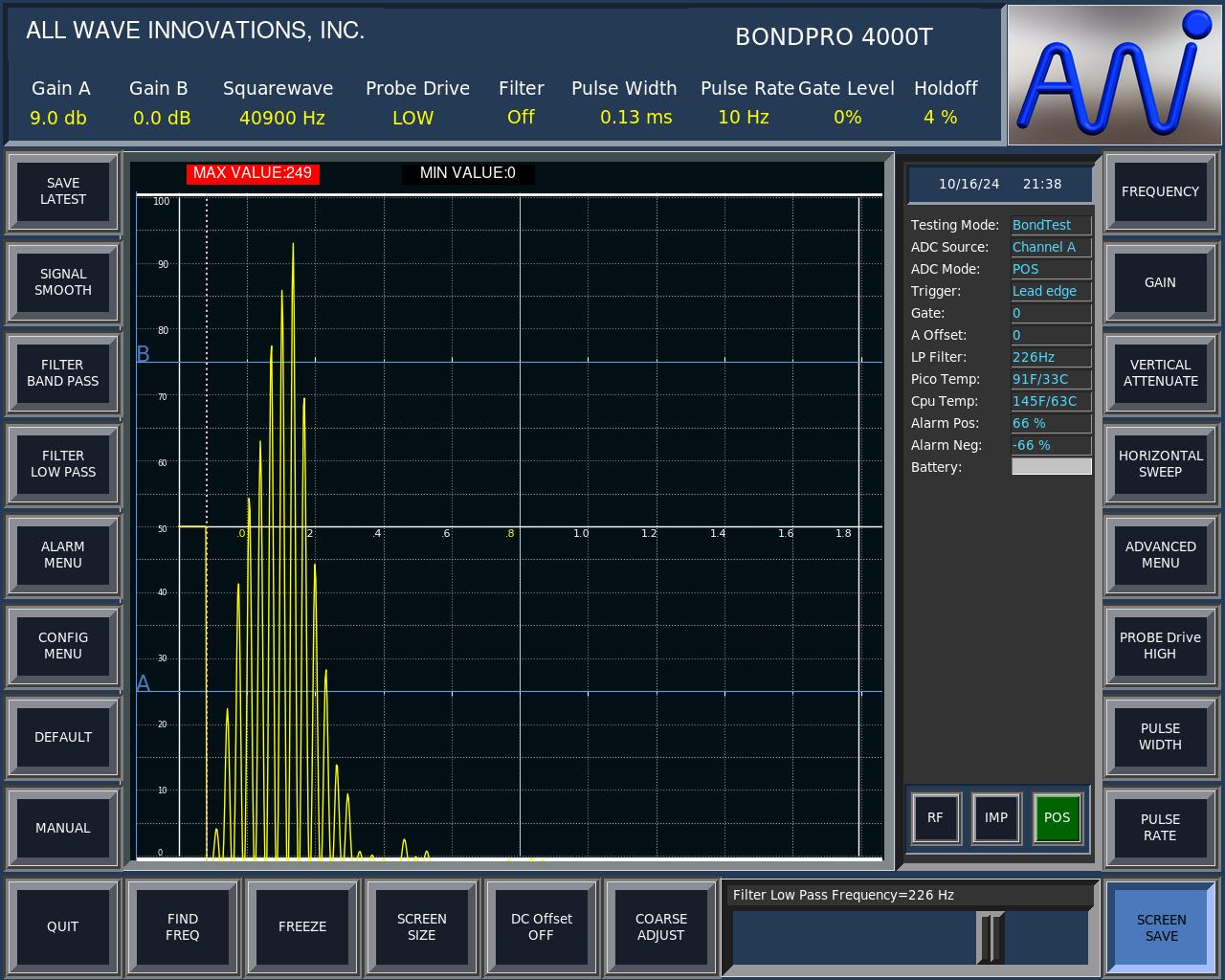

SCREENSHOT SHOWING THE RETURN WAVEFORM PLOTTED IN POSITIVE
MODE

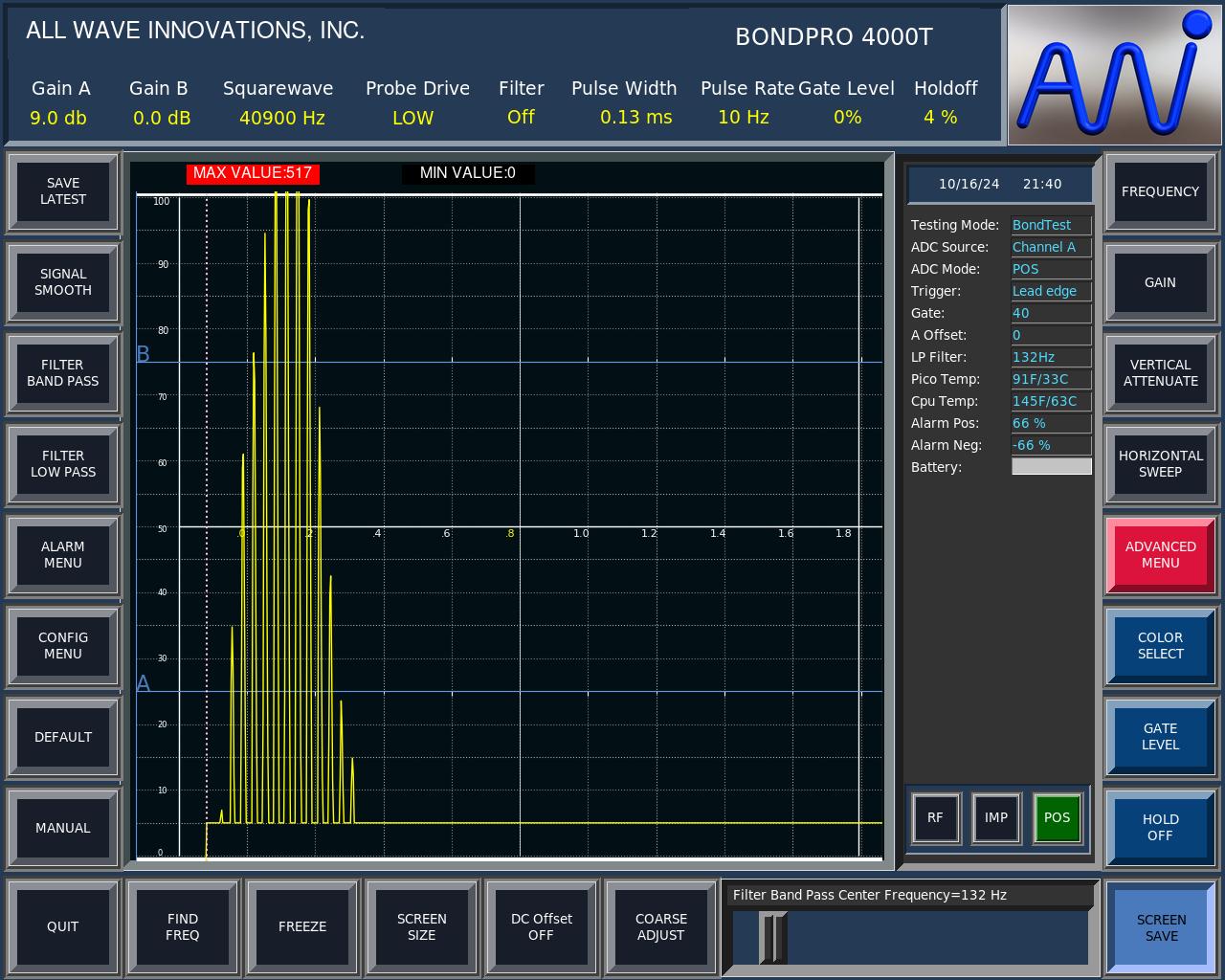

SCREEN SHOT SHOWING RETURN WAVEFORM PLOTTED IN THE POSITVE
MODE WITH THE GATE LEVEL ADJUSTED UP FROM THE BASELINE TO
PREVENT NOISE SPIKES FROM BEING PLOTTED.

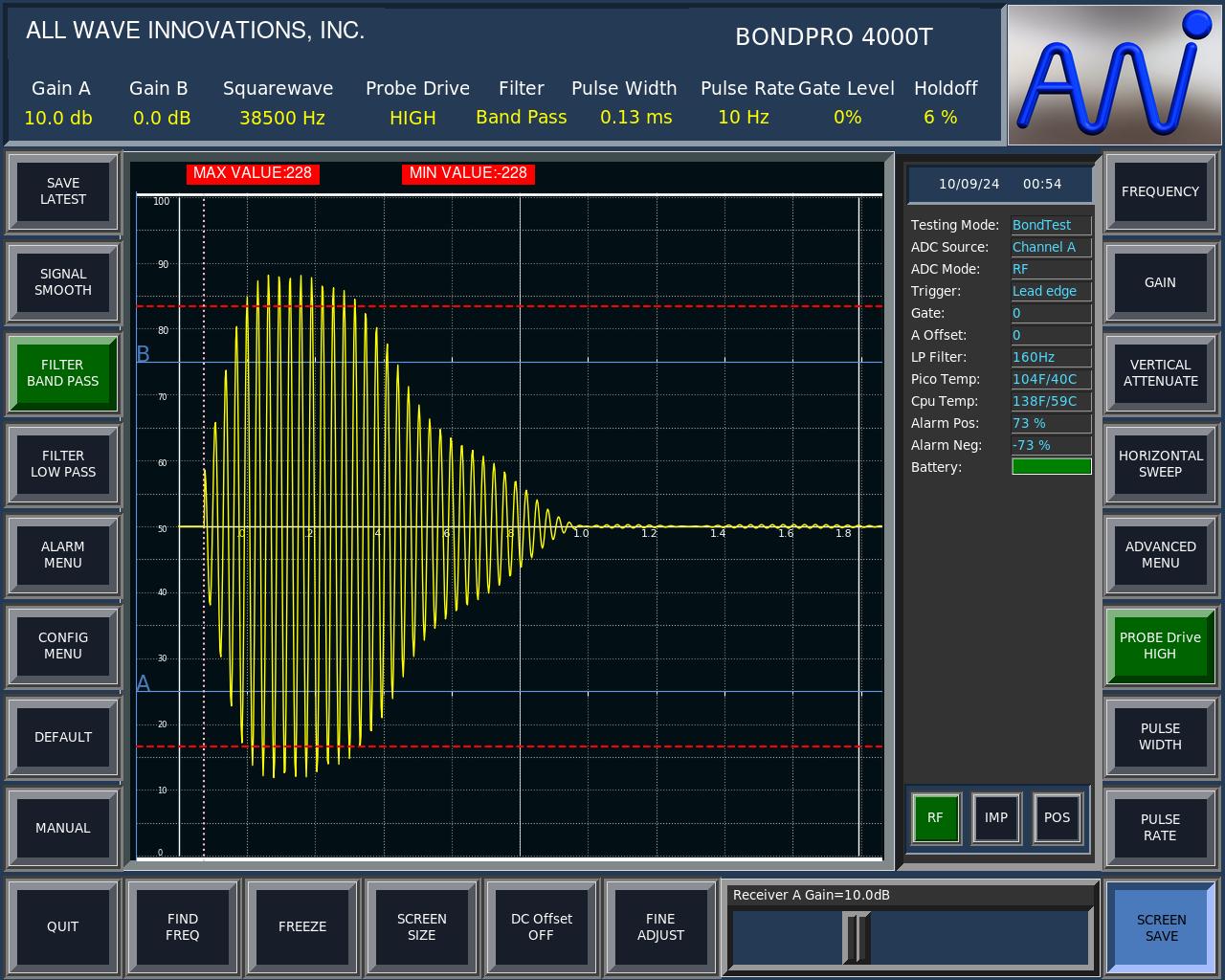

SCREENSHOT SHOWING THE RETURN WAVEFORM PLOTTED IN RF MODE
WITH THE BANDPASS FILTER ON AND THE HOLDOFF LINE ADJUSTED OUT
TO ELIMINATE ANY ARTIFACTS FROM BEING PLOTTED PRIOR TO THE RETURN WAVEFORM

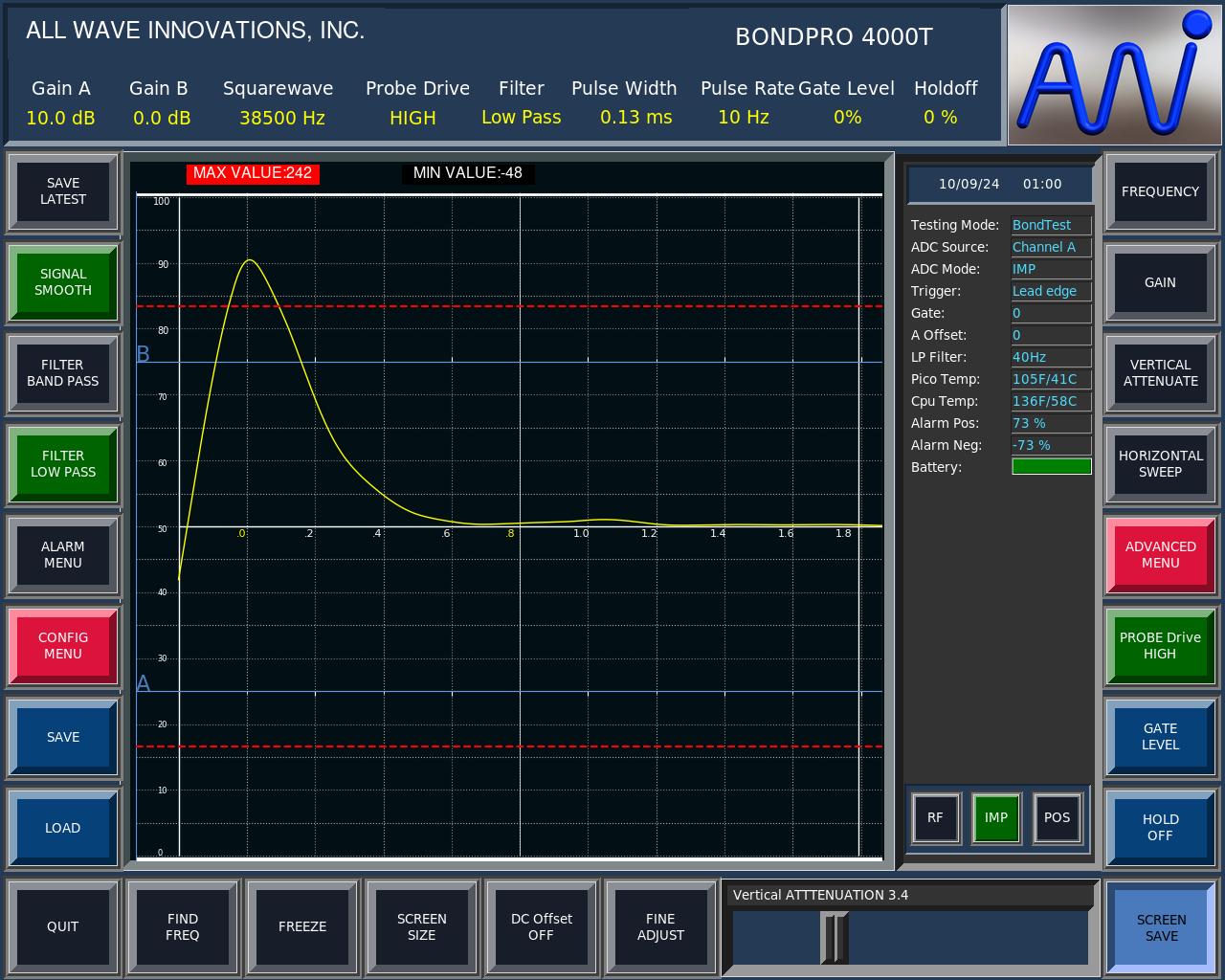

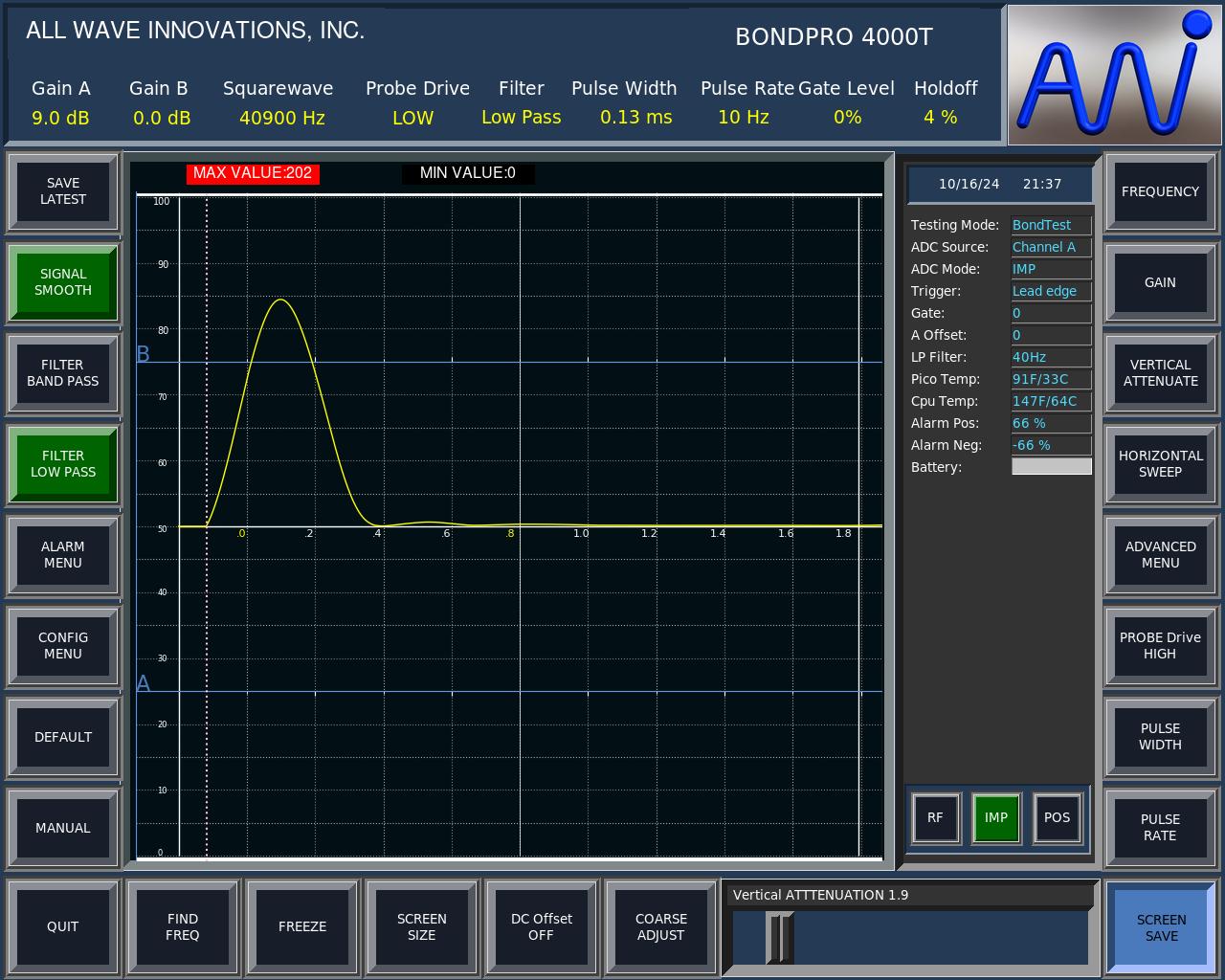

SCREENSHOT SHOWING THE RETURN WAVEFORM PLOTTED IN IMPULSE MODE WHICH SMOOTHS OUT THE RETURN FOR ANOTHER METHOD OF FLAW ANALYSIS.
